Drone sprayer manufacturer direct sales
Provide customers with a complete set of agricultural drone sprayer solutions.
Medicine box
20L
Battery
14S20000mAh
Working temperature
0℃-40℃
Warranty
2 years
Flight speed
0-15m/s
Spraying width
4-8m
Spraying efficiency
8L/min

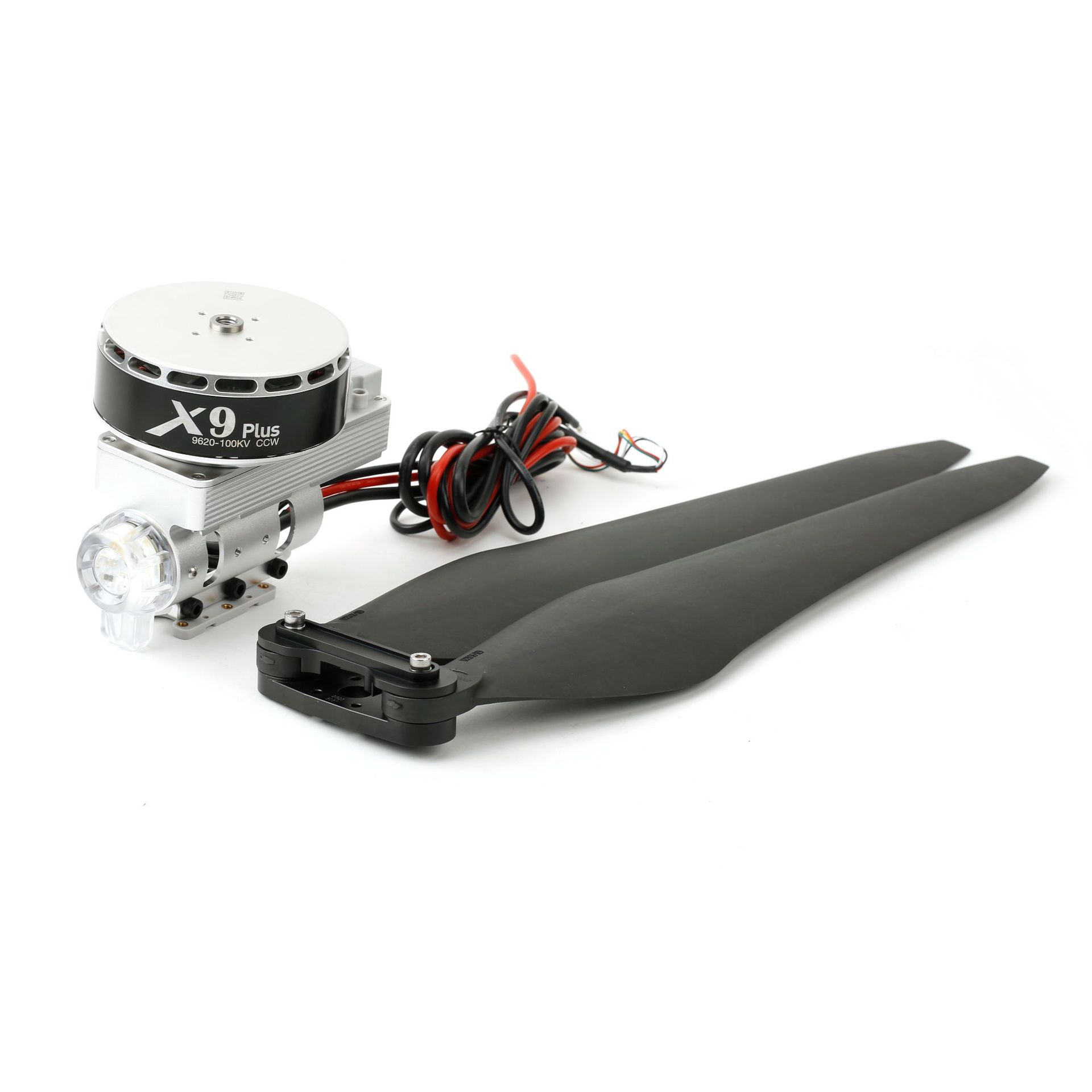

X9 Plus motor
Provide more sufficient power support for drone sprayers.

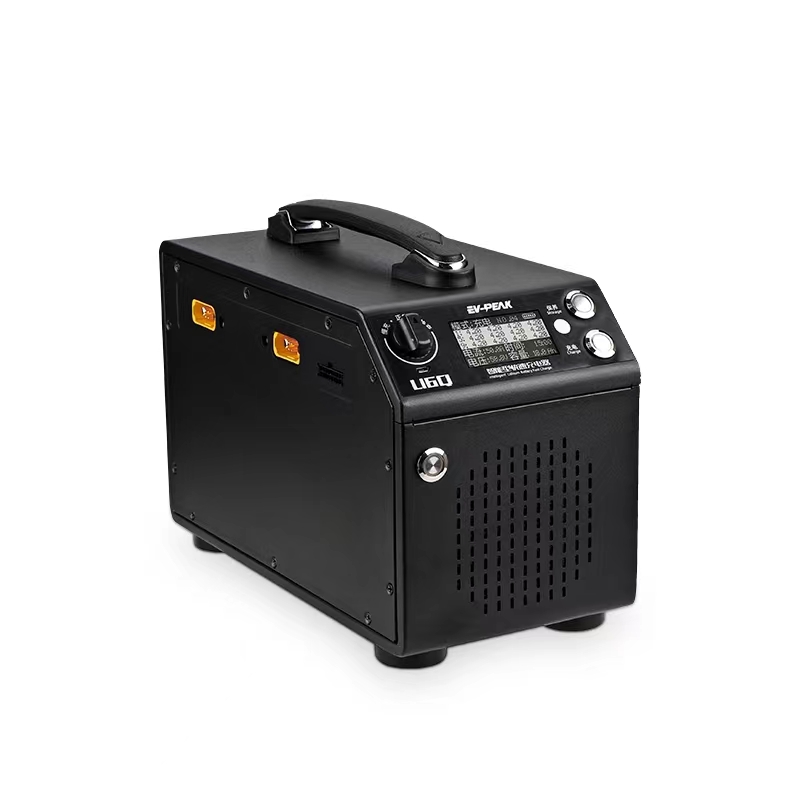

4-channel 60A 3KW Charger
Applicable to 12S-14S batteries, adjustable output mode, with safety protection function.

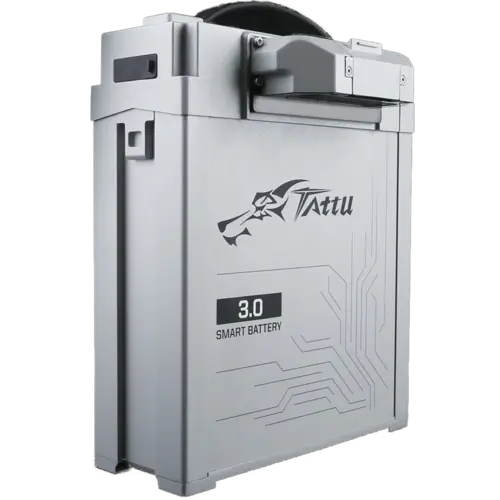

14S 20000mAh Battery
10min to charge to 80% power, no-load endurance time 23min

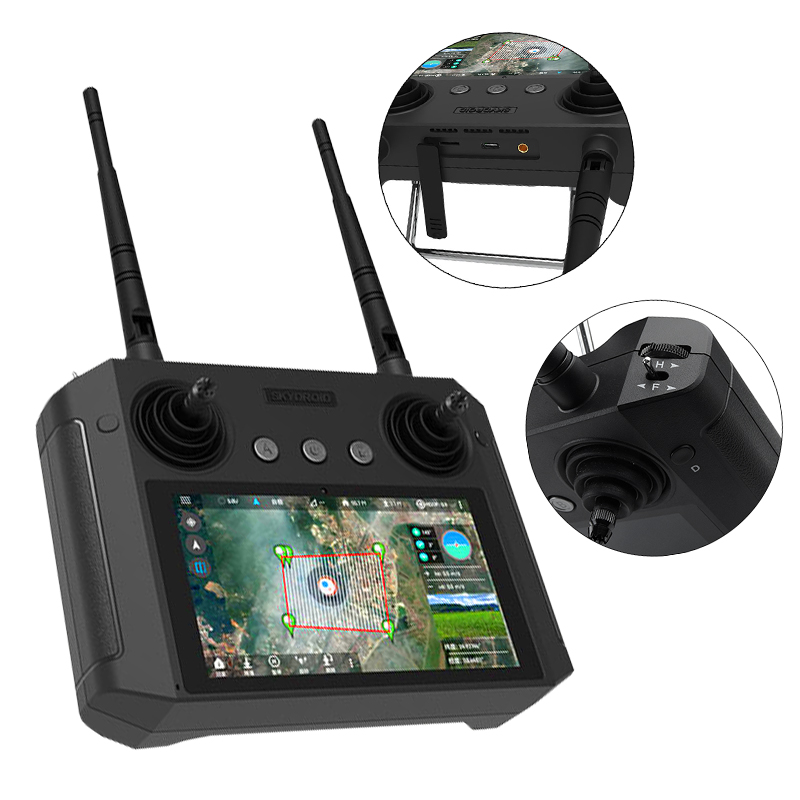

H12 Remote Control
5.5-inch 1080P HD screen, 30km image transmission, 15 hours of long battery life
When resume flights, automatically optimate route to save electricity and time.

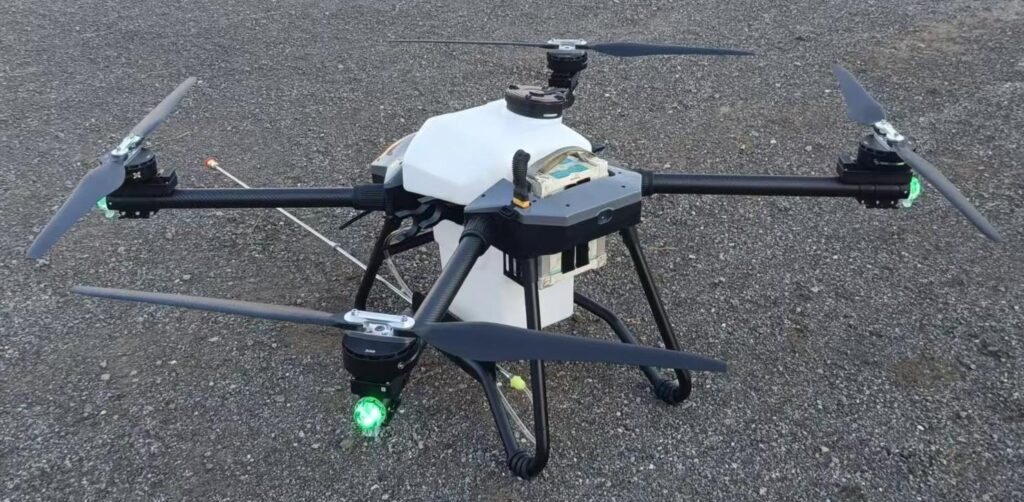

| Product model | E-Z20X |
| Product structure | 4-axis 4-propeller |
| Medicine box volume | 20L |
| Product wheelbase | 1420mm |
| Takeoff weight | 40kg |
| Product weight | 20kg |
| Unloaded flight | 15-20min |
| Unfolded size (without propellers) | 1300*1300*600mm |
| Folded size | 900*510*630mm |
| Spray width | 4-8m |
| Power system | X9plus motor |
| Propeller blades | 36 inches |
| Spraying per flight | 18-25 mu |
| Flight speed per flight | 0-15m/s |
| Spraying method | 8 pressure nozzles |
| Water pump | 8L/min |
| Flight control | Jiyi K++ V2 |
| Hovering accuracy | Horizontal ±1.5m Vertical ±0.5m |
| Maximum tilt angle | 30° |
| Maximum yaw speed | 150°/second |
| Wind resistance level | Continuous wind level 4/gust level 5 |

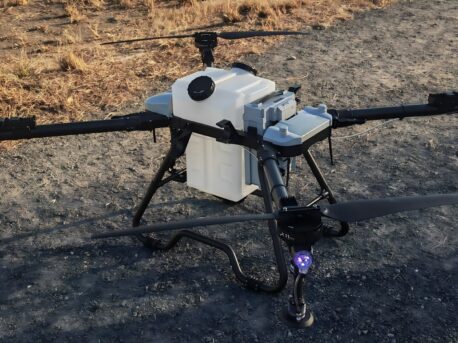

E-Z30X Drone sprayer
E-D25L Drone sprayer

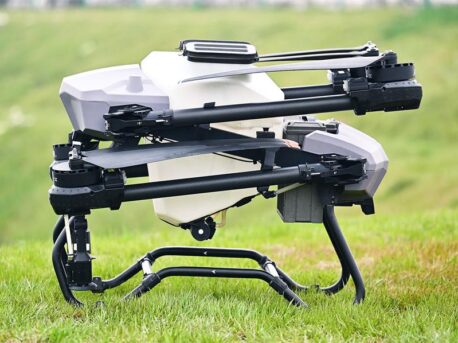

E-Z50 Drone Sprayer
